Connect Clusters

Connect clusters are required when using MirrorMaker 2 or Confluent Replicator as your replication tool. These clusters host the replication connectors that move data between Kafka clusters.

Connect Cluster Summary

The summary page displays all registered Connect clusters with their validation status. Use the search bar to locate a specific cluster.

Adding a Connect Cluster

Click Add Connect Cluster to open the registration form.

Basic Information

Field	Required	Description
Cluster Alias	Yes	A unique name for the Connect cluster.
Description	No	Optional description of the cluster.
Tags	No	Optional tags for organization.
REST Endpoint	Yes	The URL of the Kafka Connect REST API.

SSL Certificate Locations and Keytab Paths

If SSL or Kerberos authentication is configured on the associated Kafka clusters, provide the file paths as they exist on the Connect cluster host. These paths tell the Connect workers where to find the certificates and keytab files at runtime.

Source Kafka Cluster SSL Locations

Field	Description
Keystore Location	Path to the keystore file on the source Connect worker. Example: /etc/kafka/ssl/source-keystore.jks
Truststore Location	Path to the truststore file on the source Connect worker. Example: /etc/kafka/ssl/source-truststore.jks

Destination Kafka Cluster SSL Locations

Field	Description
Keystore Location	Path to the keystore file on the destination Connect worker. Example: /etc/kafka/ssl/dest-keystore.jks
Truststore Location	Path to the truststore file on the destination Connect worker. Example: /etc/kafka/ssl/dest-truststore.jks or a custom path such as /mnt/kafka/external-configuration/app-certs-cz

Kerberos Keytab Locations (GSSAPI)

Note

This section appears only when the associated source or destination Kafka cluster uses GSSAPI (Kerberos) authentication. For details on configuring a Kerberos-secured Kafka cluster, see GSSAPI (Kerberos) Fields.

Ensure your Connect workers already have the keytab files deployed to their filesystem before filling in these paths. KMI does not transfer keytab files to Connect workers; it only passes the paths to the connector configuration.

When a source or destination Kafka cluster uses Kerberos, provide the filesystem paths where the Connect workers can find the keytab files at runtime. If the destination cluster also uses SSL, ensure the destination truststore path is set under Destination Kafka Cluster SSL Locations above.

Source Kerberos cluster

Field	Description
Source Keytab Path	Path to the keytab file on the source Connect worker. Example: /mnt/kafka/external-configuration/kerberos-client.keytab

Destination Kerberos cluster

Field	Description
Destination Keytab Path	Path to the keytab file on the destination Connect worker. Example: /etc/kafka/keytabs/dest.keytab
Destination Truststore Location	If the destination Kerberos cluster also uses SASL_SSL, provide the path to the truststore on the destination Connect worker. Example: /mnt/kafka/external-configuration/app-certs-cz

Tip

For a destination cluster using SASL_SSL with Kerberos, both the Destination Keytab Path and the Destination Truststore Location must be set. The truststore is required for the TLS handshake; the keytab is required for Kerberos authentication.

The following examples show a fully configured Add Connect Cluster form with SSL locations and Kerberos keytab paths filled in, after a successful connection test.

Authentication

Select the authentication method that matches your Connect cluster’s REST API configuration.

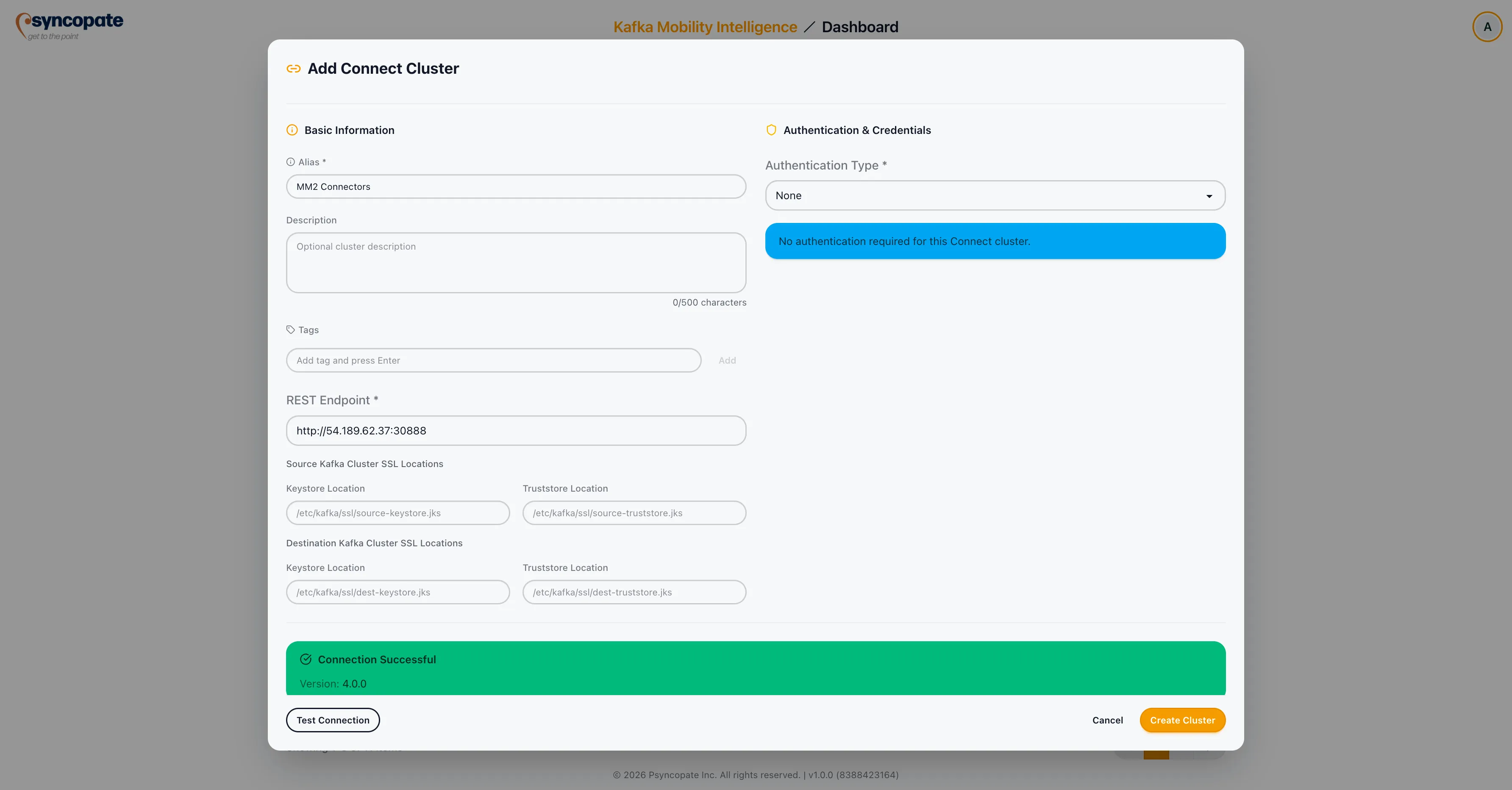

None

No authentication is required for the Connect REST API.

Basic Auth

Standard username and password authentication.

Field	Required	Description
Username	Yes	Connect REST API username.
Password	Yes	Connect REST API password.

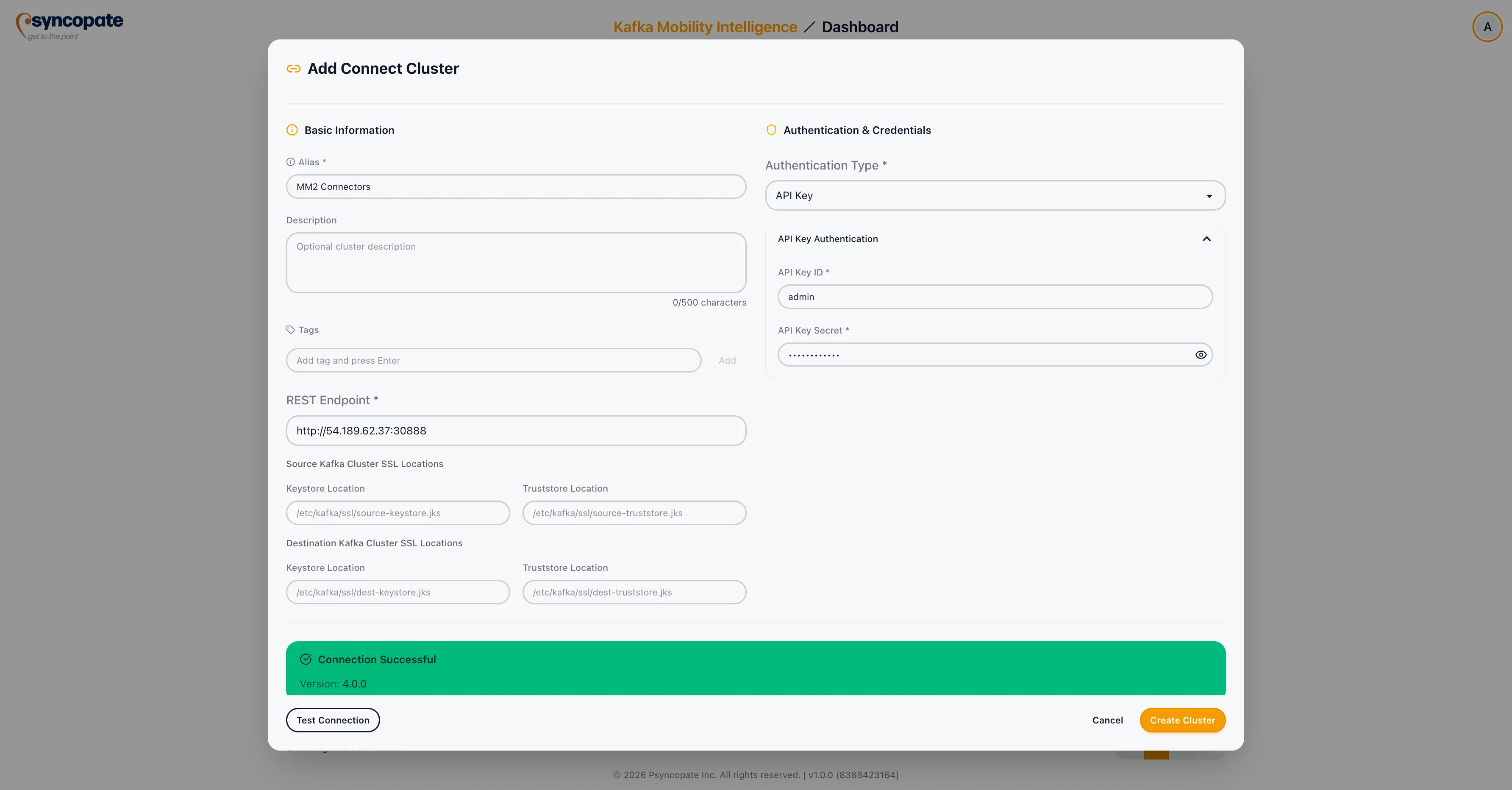

API Key

API key-based authentication.

Field	Required	Description
API Key	Yes	The API key for authentication.
API Secret	Yes	The API secret for authentication.

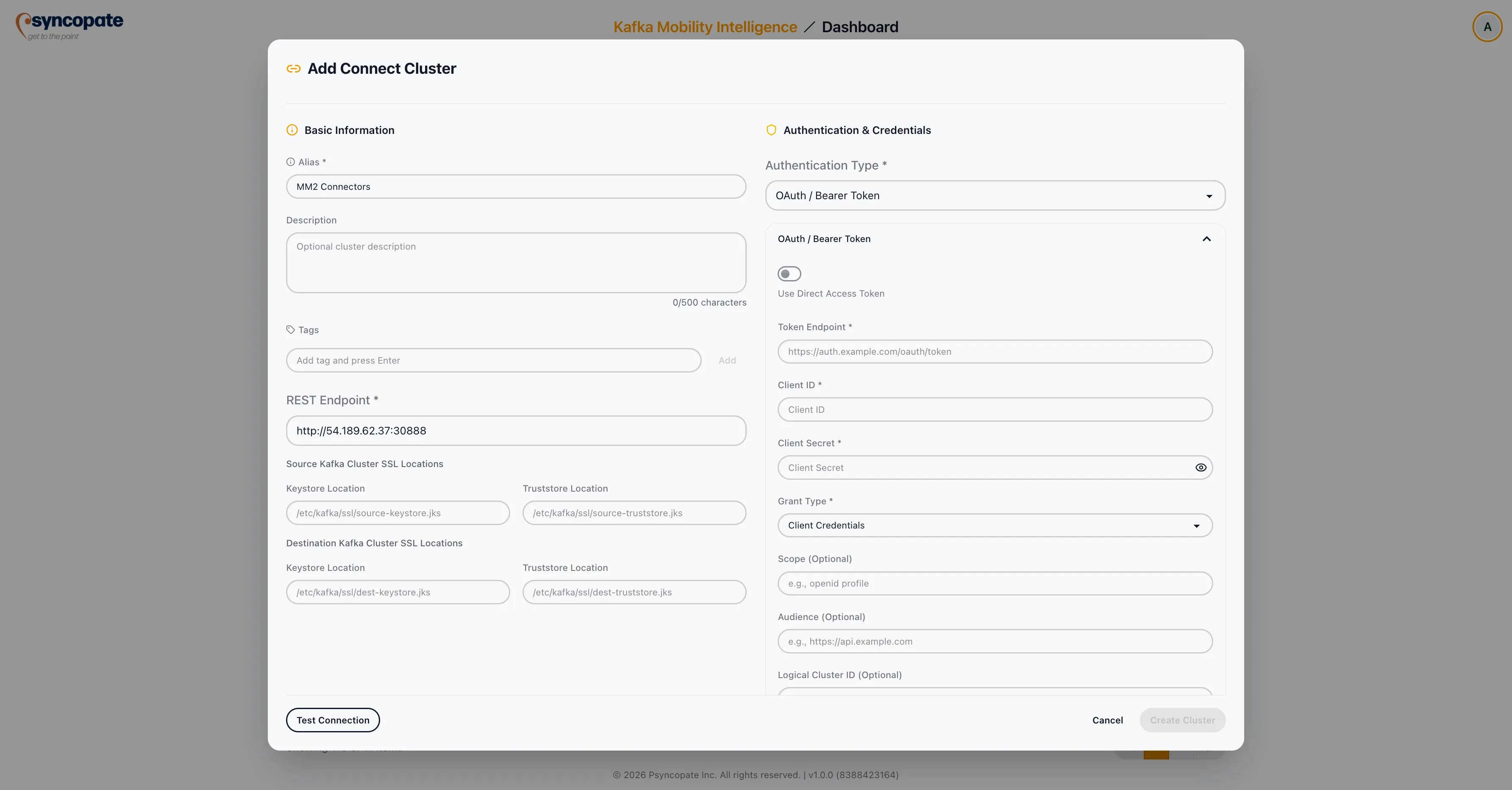

OAuth / Bearer Token

OAuth 2.0 or bearer token authentication. Toggle between two modes:

Direct Token Mode: Provide a pre-obtained bearer token.

OAuth Endpoint Mode:

Field	Required	Description
Token Endpoint	Yes	The OAuth 2.0 token endpoint URL.
Client ID	Yes	The OAuth client identifier.
Client Secret	Yes	The OAuth client secret.
Grant Type	Yes	The OAuth grant type. Supported values: client_credentials, password, refresh_token.
Scope	No	OAuth scope to request.
Audience	No	Target audience for the token.

SSL/TLS Truststore (optional)

If the OAuth token endpoint requires SSL verification with a custom certificate authority, provide the truststore configuration:

Field	Required	Description
SSL Truststore File	No	Upload a truststore file for verifying the token endpoint’s SSL certificate.
SSL Truststore Password	No	Password for the truststore file.

SSL/TLS

Certificate-based authentication using SSL/TLS client certificates. Three certificate formats are supported.

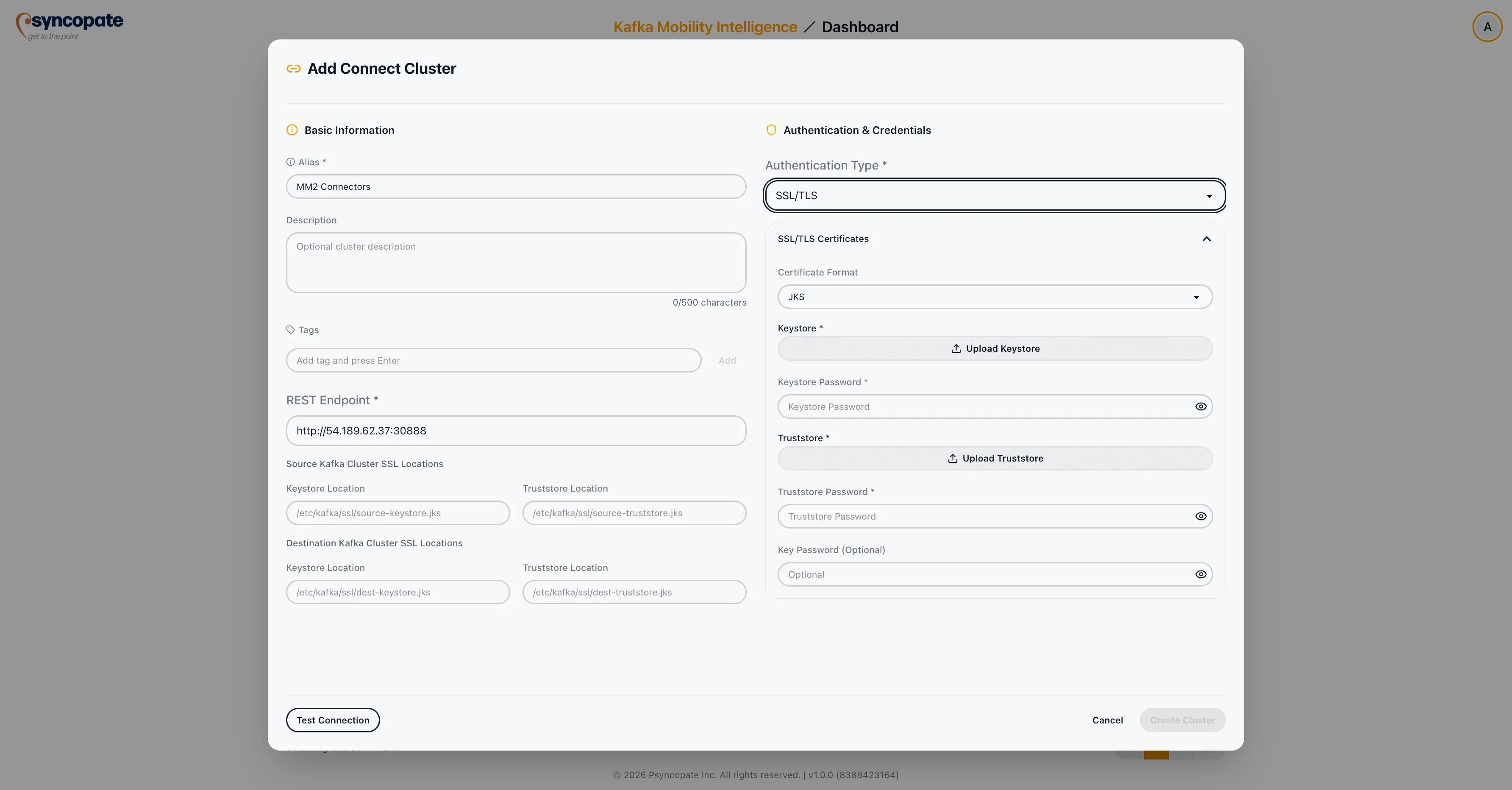

JKS (Java KeyStore)

Field	Required	Description
Keystore File	Yes	Upload the JKS keystore file.
Keystore Password	Yes	Password for the keystore.
Truststore File	Yes	Upload the JKS truststore file.
Truststore Password	Yes	Password for the truststore.

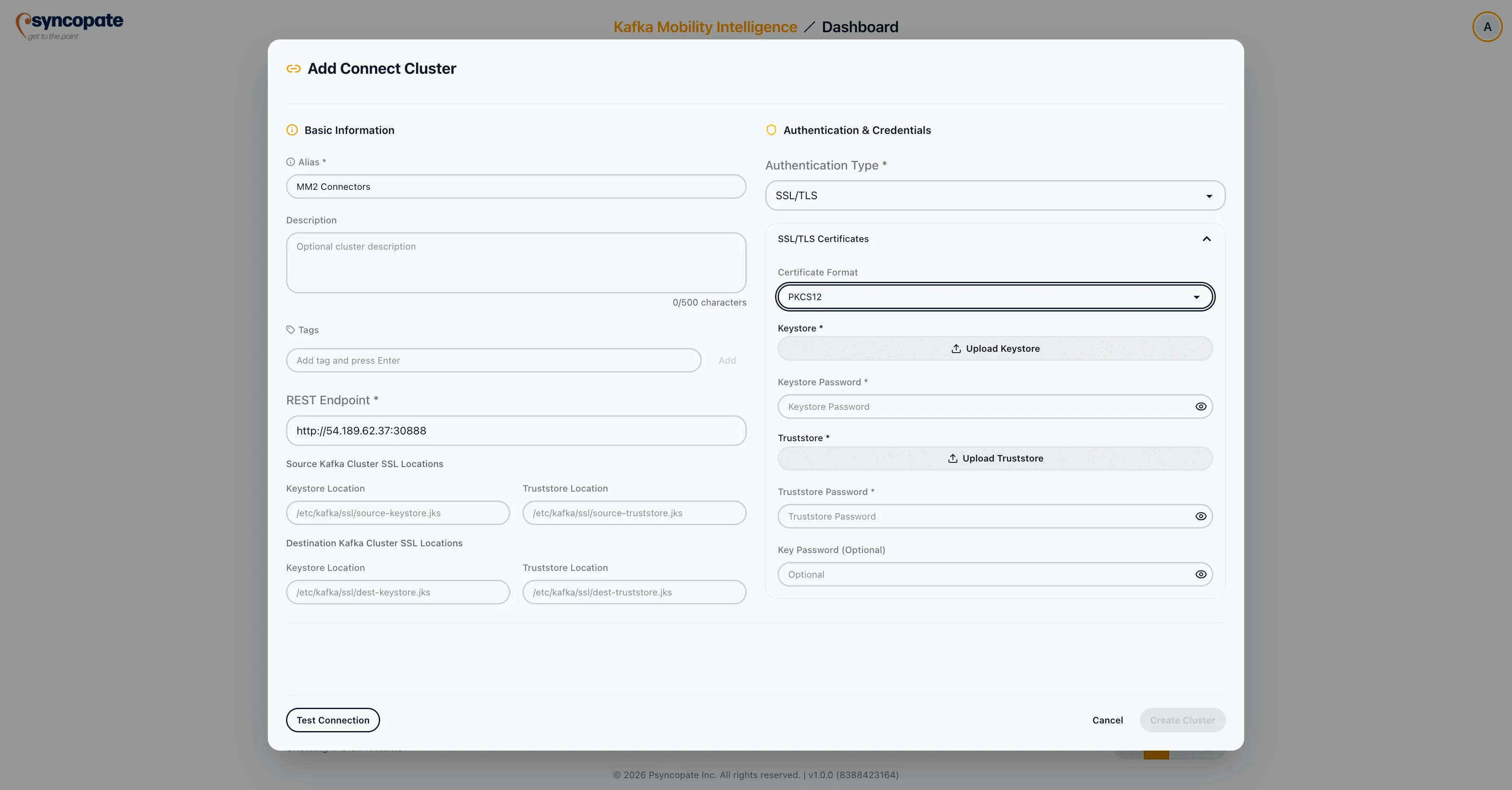

PKCS12

Field	Required	Description
Keystore File	Yes	Upload the PKCS12 keystore file.
Keystore Password	Yes	Password for the keystore.
Truststore File	Yes	Upload the PKCS12 truststore file.
Truststore Password	Yes	Password for the truststore.

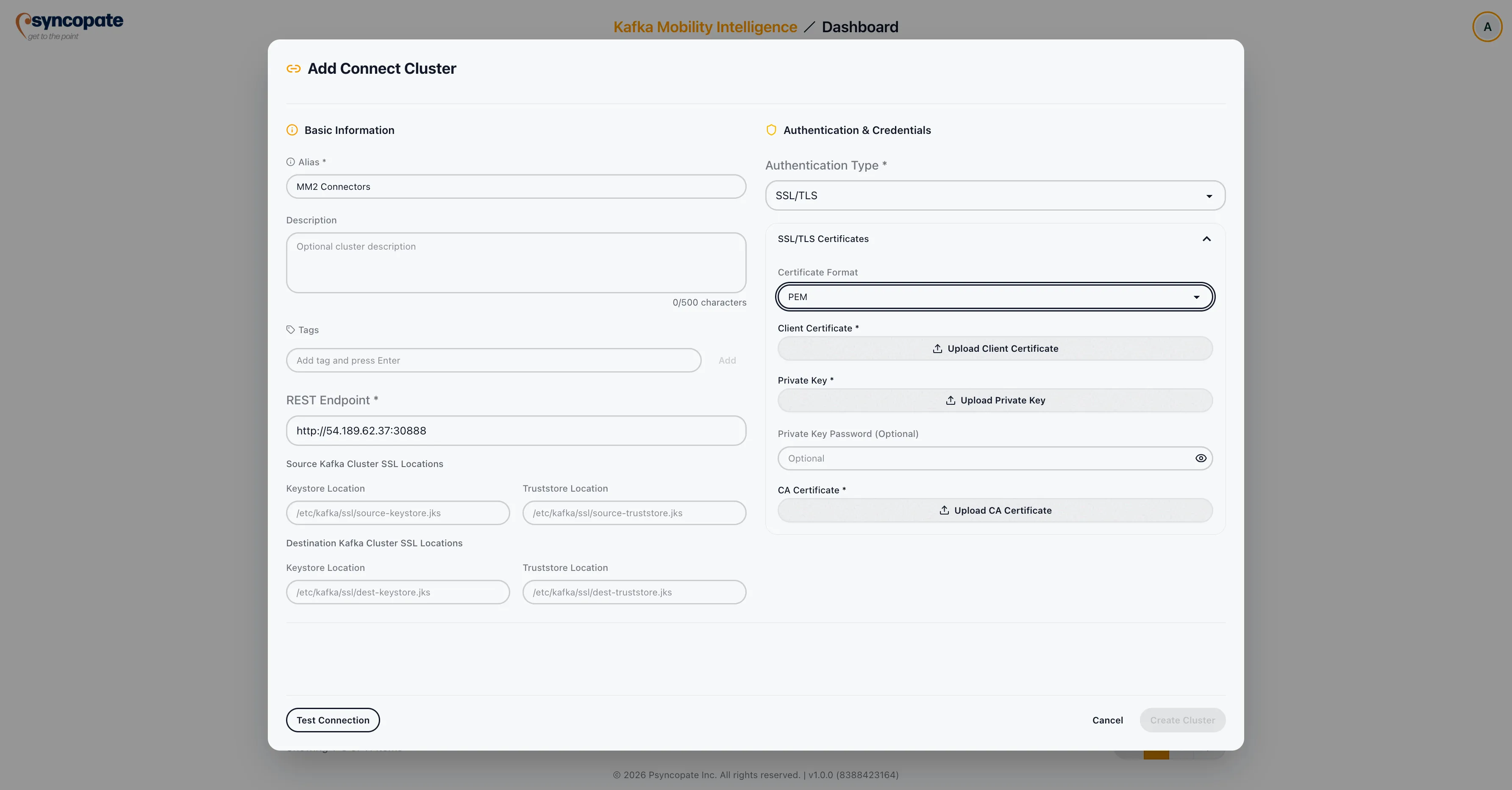

PEM

Field	Required	Description
CA Certificate File	Yes	Upload the CA certificate in PEM format.
Client Certificate File	Yes	Upload the client certificate in PEM format.
Client Key File	Yes	Upload the client private key in PEM format.
Client Key Password	No	Password for the client private key, if the key is encrypted.

Cloudera SMT Plugin (Cloudera Sources)

When your migration source uses Cloudera-native serialization and the replication tool is MirrorMaker 2 or Replicator, install the Cloudera re-frame Single Message Transform (SMT) on the Connect cluster. The SMT rewrites Cloudera-native wire-format bytes so Confluent consumers on the destination can deserialize them.

Installing the SMT JAR

1. Download the sample SMT Java source from the plan and build it into a jar (or use your own implementation that matches the configured class name).

2. Copy the jar to a directory on the Connect worker’s plugin path. The plugin path is the directory (or set of directories) configured in the worker’s plugin.path property (for example, /opt/kafka/plugins/).

   cp cloudera-reframe-smt.jar /opt/kafka/plugins/

3. Restart the Connect worker so it picks up the new plugin.

4. Verify that the plugin is available by checking the Connect REST API:

   curl http://<connect-host>:8083/connector-plugins | grep -i reframe

   The class name from your SMT configuration block should appear in the list.

Caution

Install and verify the SMT plugin before starting the migration job. If the transform class is not present on the Connect worker’s plugin.path, the connector will fail to start when the job is submitted.

Note

This applies only to Cloudera sources that require re-framing (serde protocol 1, 2, or 3). For Cloudera protocol 0 (Confluent-compatible framing) or non-Cloudera sources, no SMT jar is needed.

Testing the Connection

After configuring the Connect cluster, click Test Connection to verify that the suite can reach the Connect REST API with the provided credentials.

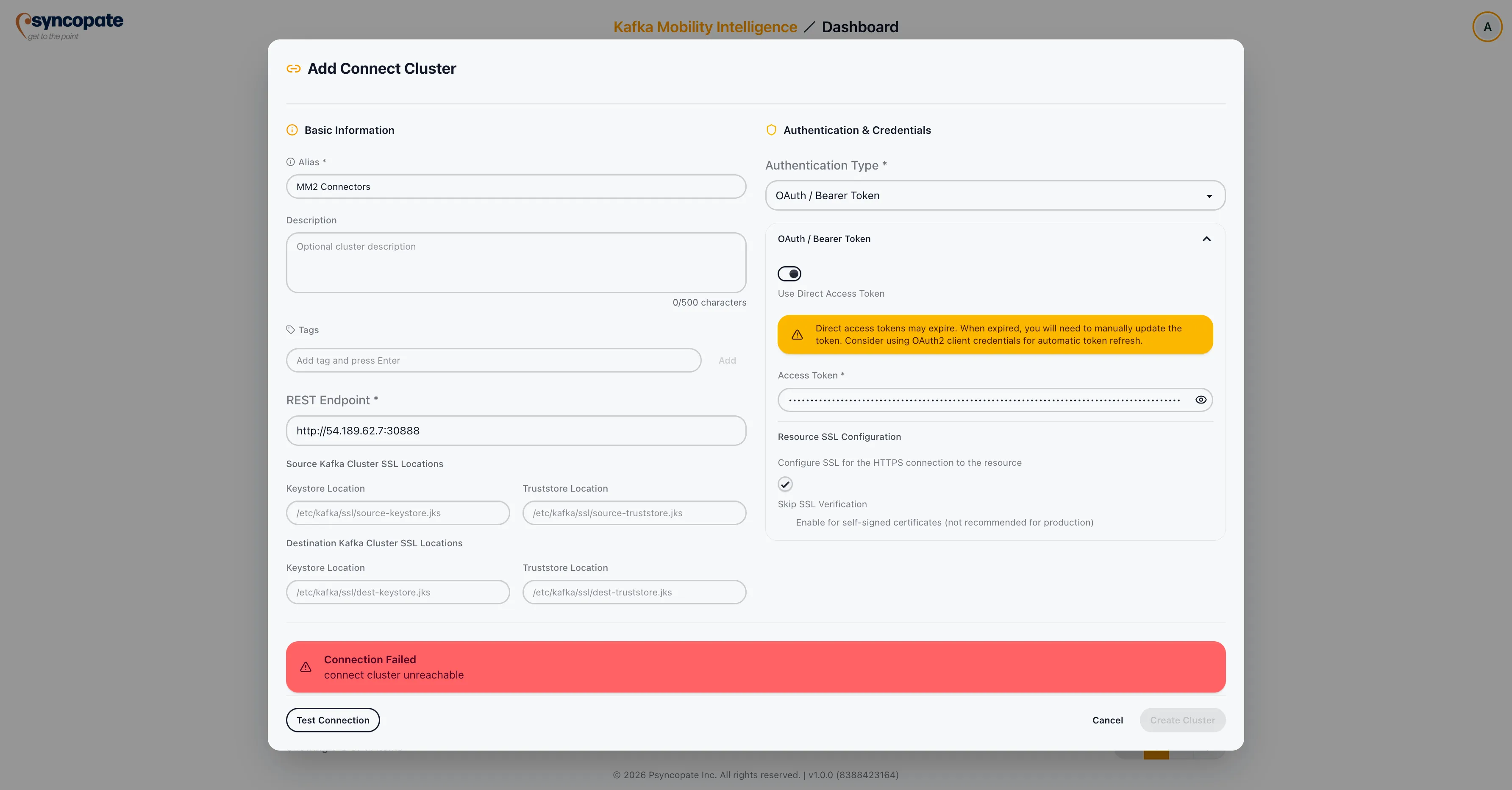

Caution

If the connection test fails, verify the REST Endpoint, authentication credentials, and network connectivity before retrying.

Managing Connect Clusters

Editing a Cluster

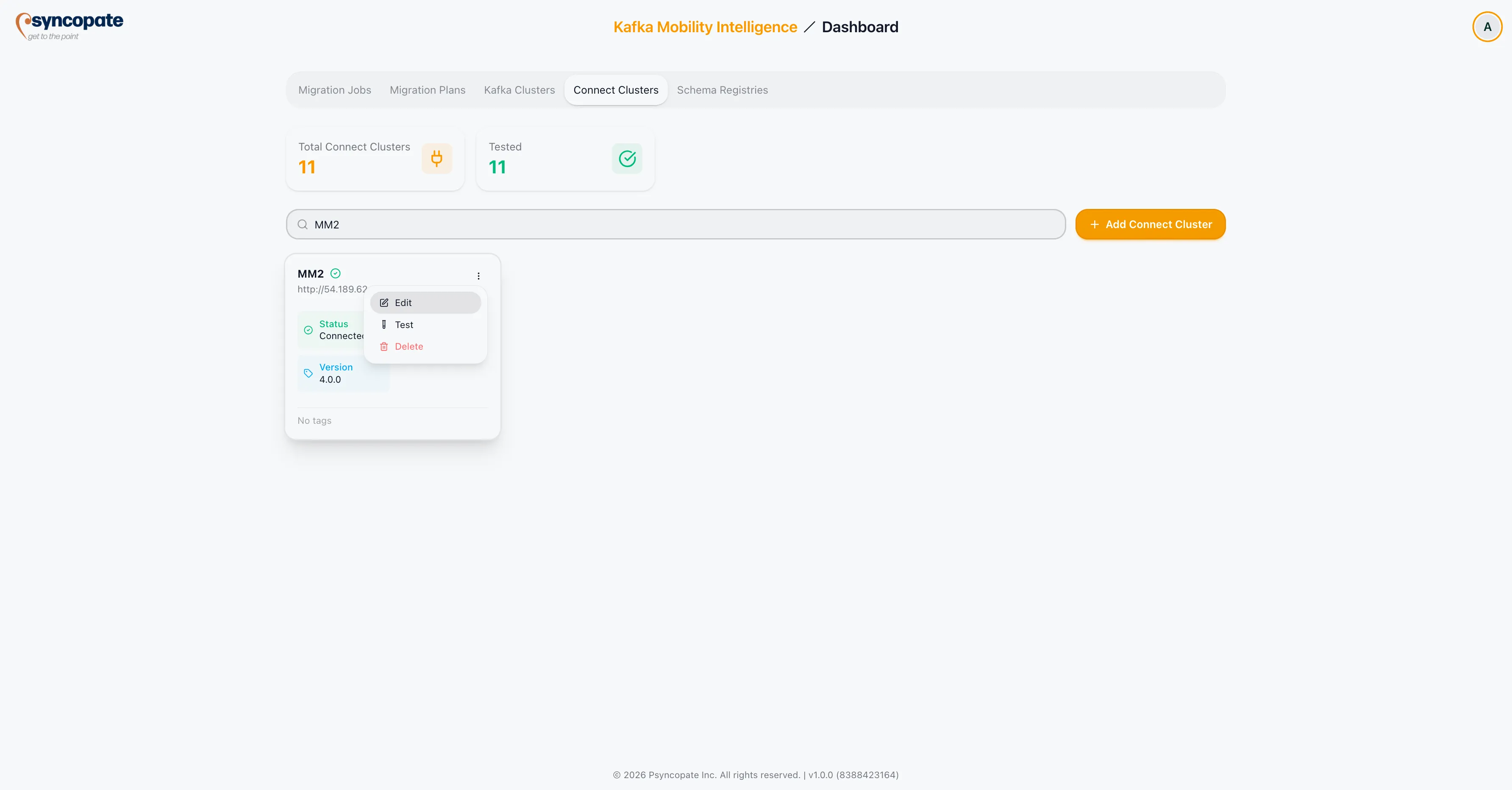

Click the three-dot menu on any cluster row and select Edit to modify its configuration. You can also re-test the connection from the edit view.

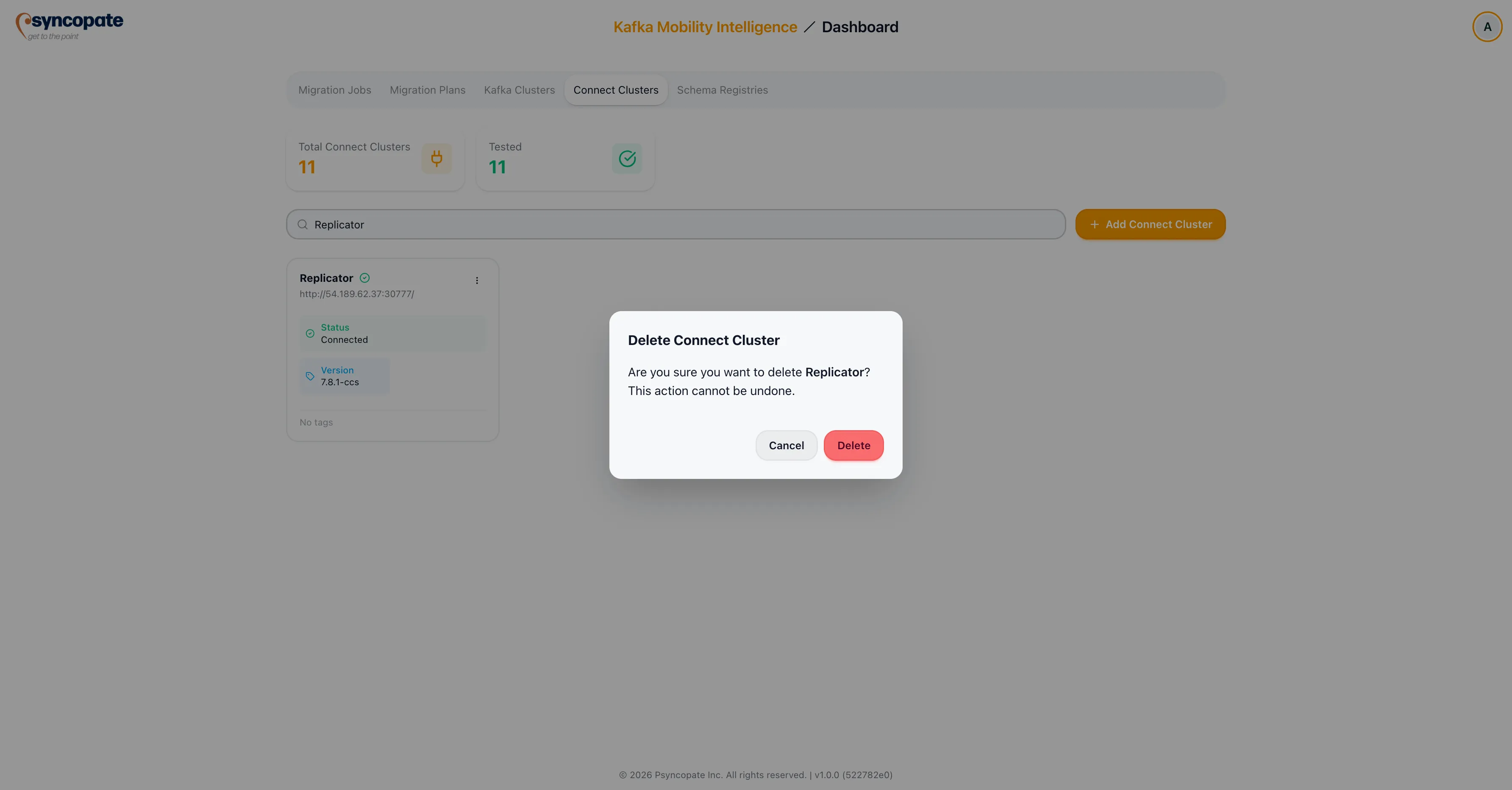

Deleting a Cluster

Click the three-dot menu and select Delete. A confirmation dialog is displayed before the cluster is removed.

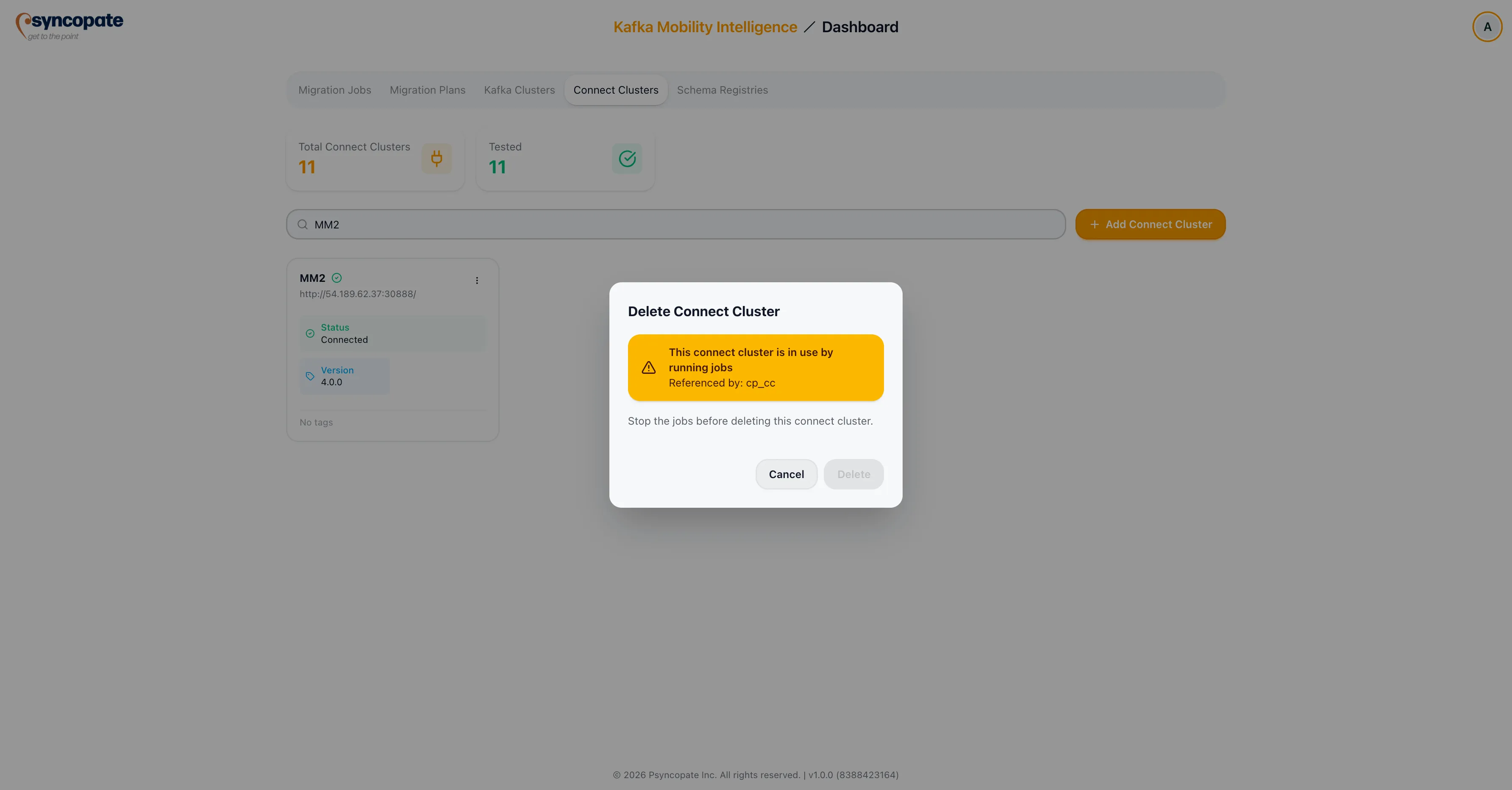

Danger

A Connect cluster that is associated with a running migration job cannot be deleted. Stop the job first, then delete the cluster.
