Builder Workspace

Open the builder from a gateway card’s kebab menu, or via Edit in Builder on the detail page.

Toolbar

Element	Description
Back	Returns to the gateway detail page.
State tabs	Init / Fenced / Switchover, each showing separate red (error) and amber (warning) count badges when issues exist.
Copy from…	Shown next to the tabs on Fenced (“Copy from init”) and Switchover (“Copy from fenced”). Copies that state’s full config over the current one.
Preview	Opens a Generated Config Preview modal; see below.
Issue badge	Shown when any state has validation issues, labeled with the error/warning breakdown (e.g. “2 errors, 1 warning”). Lists every issue, error-severity first; clicking one switches to that state and selects the offending block.
Unsaved	Appears whenever there are pending unsaved changes and clears after a successful Save.
Download	See below; blocked by toast, not disabled.
Save	Persists all three state configs, secret store auth mappings, and node positions, and shows a “Gateway saved” toast.

Caution

Download stays clickable even when blocked. Clicking it with error-severity validation issues present shows a “Fix validation errors first” toast naming the error count; clicking it with unsaved changes shows a “Save changes first” toast, since the download always renders the last saved gateway, not your current edits. The validation check runs first, fix errors before the unsaved-changes check will even be reached.

Tip

Preview has its own Init/Fenced/Switchover tabs, independent of the toolbar’s active state tab: it defaults to whichever state you had selected, but you can flip between all three without closing it. A Gateway CR / Full toggle switches between just the CR YAML and a fuller view that also includes the auth-mapping secrets, prerequisite secrets, and the kubectl commands to create them.

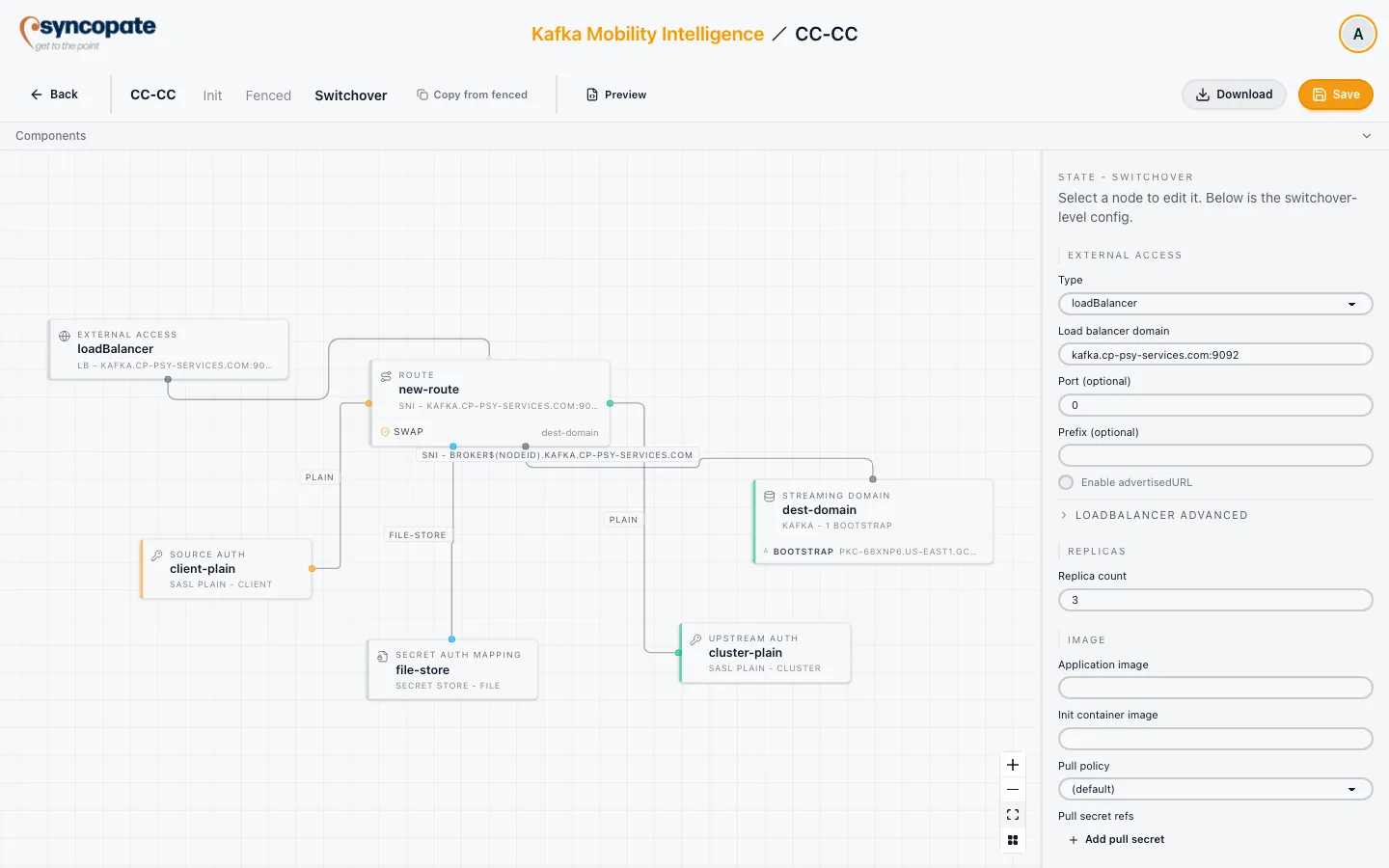

Canvas and Component Palette

A collapsible palette above the canvas lets you drag in blocks, grouped as:

Category	Blocks
Routing	Route
Client Auth	mTLS, SCRAM, SASL Plain, OAuth, None
Cluster Auth	mTLS, OAuth, OAuthBearer, SASL Plain, Digest, None
Streaming	Domain
Secret Stores	File, Vault, AWS, Azure

Bootstrap servers aren’t a separate palette block: they’re managed inline on the Streaming Domain node, which seeds one bootstrap server automatically when added. External Access isn’t in the palette either, and nothing in the builder can create one. It doesn’t need to: every new gateway is created with an External Access block already present in all three states, whether you started from a migration template or from an empty gateway. The Inspector edits that block’s fields (see Block Reference) and it appears as its own canvas node, connected to every route in that state by an edge. When a state has none, the Inspector reads “No external access configured.”

The canvas renders these as nodes connected by edges: a route connects to its client auth, cluster auth, secret store, and streaming domain. On the canvas, a Client Auth node is titled Source Auth, a Cluster Auth node is titled Upstream Auth, and a Secret Store node is titled Secret Auth Mapping. The palette calls them Client Auth, Cluster Auth, and Secret Store. The Inspector labels a selected block by side and type instead, as in Auth - client - mtls or Secret Store - Vault, so the compound palette names don’t appear there. A route node is titled “Route”, or “Route - fenced” when it carries a fence, and shows a swap-or-passthrough badge. Passthrough routes render their auth/secret/cluster handles faded, since those references don’t apply.

A Streaming Domain node’s header shows its streaming type and bootstrap count (e.g. “kafka - 2 bootstraps”), and its body lists each bootstrap server and node ID range directly on the node, the same lists you edit in the Inspector.

You can wire a route directly on the canvas: drag a connection from the route to a Client Auth, Cluster Auth, Secret Store, or Streaming Domain node, and it writes that reference into the route. Which of the route’s connection points you drag from doesn’t matter, only which node you drop onto. Connecting a Client Auth, Cluster Auth, or Secret Store this way automatically promotes the route from Passthrough to Swap. Connecting a Streaming Domain always binds to that domain’s first bootstrap server, and selecting the domain in the Inspector does the same. There’s no field for choosing a different bootstrap entry, so a route always resolves against the first bootstrap server of the domain it points at.

Nodes and edges also reflect validation state directly on the canvas, not just in the toolbar’s Issue badge: a node with an issue gets a red (error) or amber (warning) border and icon, and its edges are colored the same way, red and dashed for an invalid reference (e.g. a swap route’s client auth no longer exists), amber and dashed for a warning, blue when selected, gray otherwise. Edges also carry a small label: the broker identification strategy for a route-to-domain edge, the auth type for a route-to-auth edge, or the store name for a route-to-secret-store edge.

A Re-layout button in the canvas’s zoom controls discards any manually-dragged node positions for the current state and reverts to the automatic layout. You can also delete a selected node with the Delete or Backspace key, the same as using its Inspector remove control, with one exception: on an External Access node those keys do nothing, and only the Inspector’s remove control takes effect.

Tip

A template-seeded Swap-mode route is passthrough in Init and Fenced (pointing at the source cluster) and only actually swaps in Switchover (pointing at the destination). If you’re checking a route’s auth wiring, make sure you’re looking at the right state tab. See Creating a Gateway for why. This also means the source auth you picked in the template, including None (unauthenticated), exists as a block in Switchover, where the swap route references it, while the Init and Fenced migration routes reference no auth at all. That is expected for a passthrough state rather than something missing. A SASL/SCRAM source is the exception: Init and Fenced also carry a client SCRAM auth and a target cluster auth, both wired to the extra SCRAM registration route, so those two states are not always empty of auth blocks.

Inspector

Selecting nothing on the canvas shows the Inspector’s state-level configuration (External Access, Replicas, Image, Resources, Probes, Admin, JVM Tuning, Pod Template Advanced, Env vars); selecting a block shows its type, identifier, a remove control, and block-level fields specific to its type. Every field for both is covered in Block Reference.

An Apply migration template action exists on the canvas as an empty-canvas starting point, seeding all three states with the template options described in Creating a Gateway. In practice you will rarely see it. It renders only when the current state’s canvas has no nodes at all and all three states are empty of routes, auths, domains, and secret stores, and since every new gateway already carries an External Access node in each state, the canvas is not empty and the button does not appear.

Caution

Removing an External Access block is close to irreversible, so treat the Inspector’s remove control on that block with care. Nothing in the builder recreates one. The only way to get it back is Copy from init or Copy from fenced, and those copies are limited: they only write into Fenced and Switchover respectively, so a state with no copy source cannot be repaired at all, and the copy replaces the whole target state rather than adding the missing block, discarding everything else that state held. If the affected state is Init, recreate the gateway.

The Delete and Backspace keys are also a trap here specifically: on an External Access node they appear to do nothing rather than removing the block, unlike every other node type.
