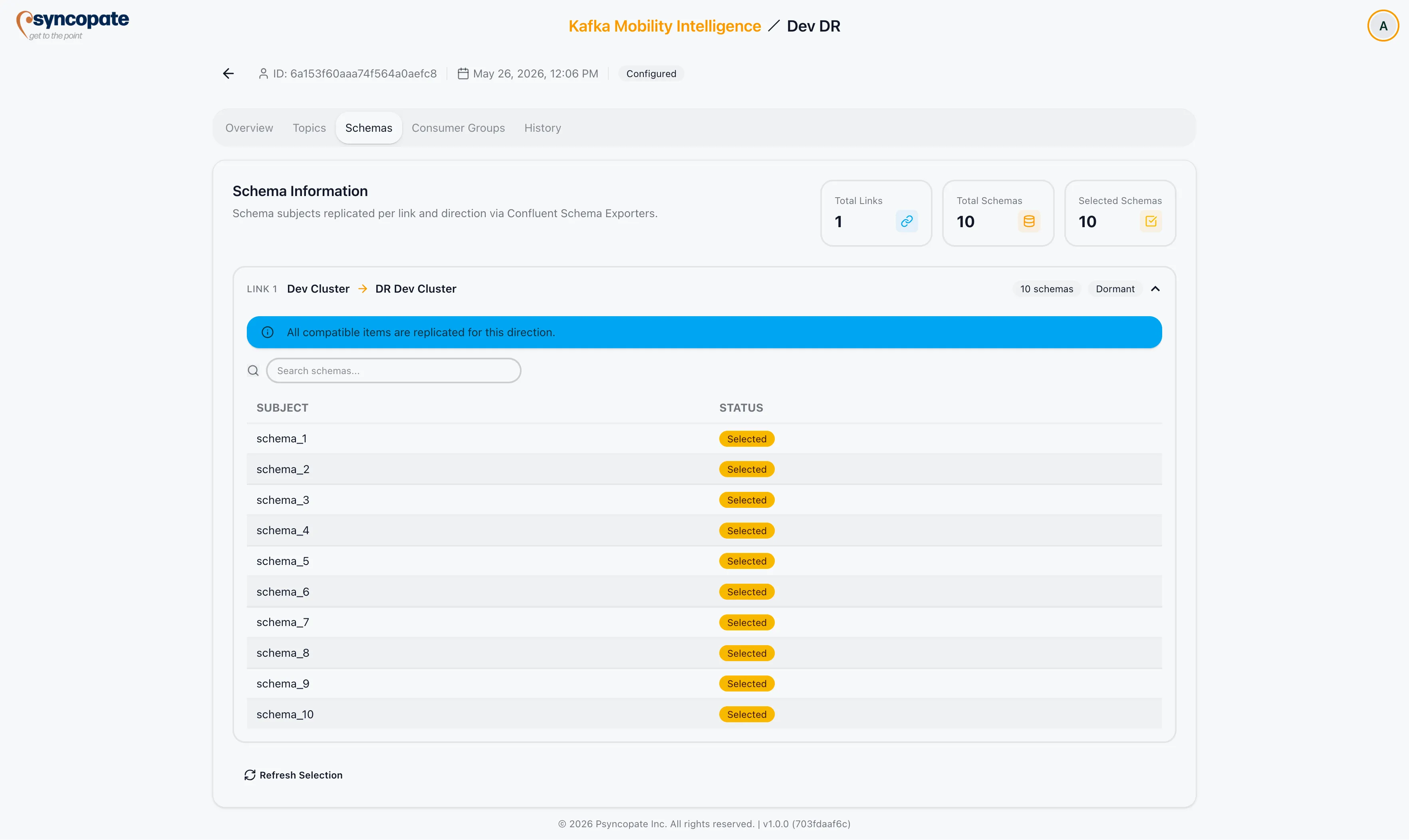

Schemas Tab
The Schemas tab shows which schema subjects are being replicated and the current status of each schema exporter.
When Schema Replication Is Disabled
Section titled “When Schema Replication Is Disabled”If schema replication was not enabled in the Cluster Topology step, an info alert is shown: Schema replication is not enabled. No further content is displayed. Schema replication can only be enabled during setup creation or re-configuration.
Stat Cards
Section titled “Stat Cards”| Card | Description |
|---|---|
| Links | Total number of links in the setup |
| Total Schemas | Combined schema subject count across all links and directions |
| Selected Schemas | Subjects explicitly selected (as opposed to all-subjects scope) |
| Source Clusters | Active-Active only. Number of distinct source clusters across all subjects. |
Per-Link Tables
Section titled “Per-Link Tables”Each link has a collapsible accordion. Inside the accordion, a table is shown per active direction.
| Column | Description |
|---|---|
| Subject Name | Name of the schema subject on the source schema registry |
| Source Cluster | Active-Active only. The cluster where this subject originates. |
Empty state — if no subjects are configured for a direction: No schemas configured for this direction. If wildcard or exclusion patterns are configured but subjects have not yet been loaded: Click ‘Refresh Selection’ to load schemas from cluster.
Schema Exporters
Section titled “Schema Exporters”A schema exporters table is shown at the bottom of the tab when exporters exist. Each row represents one exporter running between a source and destination schema registry.
| Column | Description |
|---|---|
| Source | Source cluster alias |
| Destination | Destination cluster alias |
| Exporter Name | The exporter’s identifier on the source schema registry |
| Status | Current observed status |
Exporter status values:
| Status | Meaning |
|---|---|
| Running | Exporter is active and replicating subjects |
| Paused | Exporter is paused |
| Failed | Exporter has encountered an error. Hover over the status for the error detail. |
| NotFound | The exporter no longer exists on the source schema registry |
| Stopped | Exporter has been intentionally stopped |
| Skipped-Failback | Schema orchestration was intentionally bypassed for this exporter during failback |
| Unknown | Exporter status cannot be determined |
