Confluent Gateway Overview

A Confluent Gateway acts as a proxy in front of your Kafka clients, a stable connection point that shields them from the complexity of switching brokers, credentials, and security settings during a migration. It’s the mechanism KMI uses to perform a zero-cut migration from a source cluster: Open Source Kafka, Amazon MSK, or an existing Confluent Platform or Confluent Cloud cluster, to Confluent Cloud. Clients keep talking to the gateway throughout the migration; the gateway itself is reconfigured in stages as the migration progresses, without clients ever needing to know.

Lifecycle States

A gateway resource is defined across three lifecycle states. Each is a fully independent, complete configuration: its own routes, auth, secret stores, streaming domains, and workload settings, none of it inherited from another state.

Init

Routes and auth for the initial phase, before any fencing or cutover begins, the state a newly created gateway starts configuring against the source cluster.

Property	Value
Swap-mode route	Passthrough to source cluster; swap hasn’t happened yet
Fencing	Not typically used; Init is meant to run before fencing begins. The builder doesn’t prevent checking Fence this route here, and validation doesn’t warn about it either; there’s just normally no reason to.
SCRAM registration route	Present for SASL/SCRAM sources, to pre-register destination credentials
Applied by	You, manually

Fenced

Config active during the migration window, while producers are fenced from the source cluster.

Property	Value
Swap-mode route	Passthrough to source cluster, just fenced; swap still hasn’t happened
Fencing	Migration route should be fenced; a Fenced state with no fenced route is flagged
SCRAM registration route	Should be removed; flagged if left
Applied by	KMI, automatically during the migration

Switchover

Final config once traffic is fully cut over to the destination cluster.

Property	Value
Swap-mode route	Actually swaps: client auth, cluster auth, and secret store go live against the destination
Fencing	A route still fenced here is flagged; clients would stay blocked after cutover
Bootstrap / streaming domain	Should differ from Init’s; identical values are flagged, since cutover wouldn’t actually route anywhere new
Applied by	KMI, automatically during the migration

Tip

All three states are built and saved ahead of time in the builder. Fenced and Switchover aren’t generated on the fly during a migration, which is also why Copy from init and Copy from fenced exist as explicit actions in the Builder Workspace rather than automatic inheritance. Applying a later state’s CR replaces the gateway’s live config: once Fenced is applied, Init’s saved config is still there and still editable, it just no longer reflects what’s actually running.

The flagged conditions above are covered in full in Validation Reference; the swap-timing behavior is explained in Creating a Gateway.

This section covers building, deploying, and managing gateway resources. Running an actual migration through a configured gateway is initiated and executed from a migration job’s X-Ray view, and that workflow is not yet covered in this guide. Deployment Assets explains where your responsibility ends and KMI’s begins, including what to do if a state transition fails and leaves producers fenced.

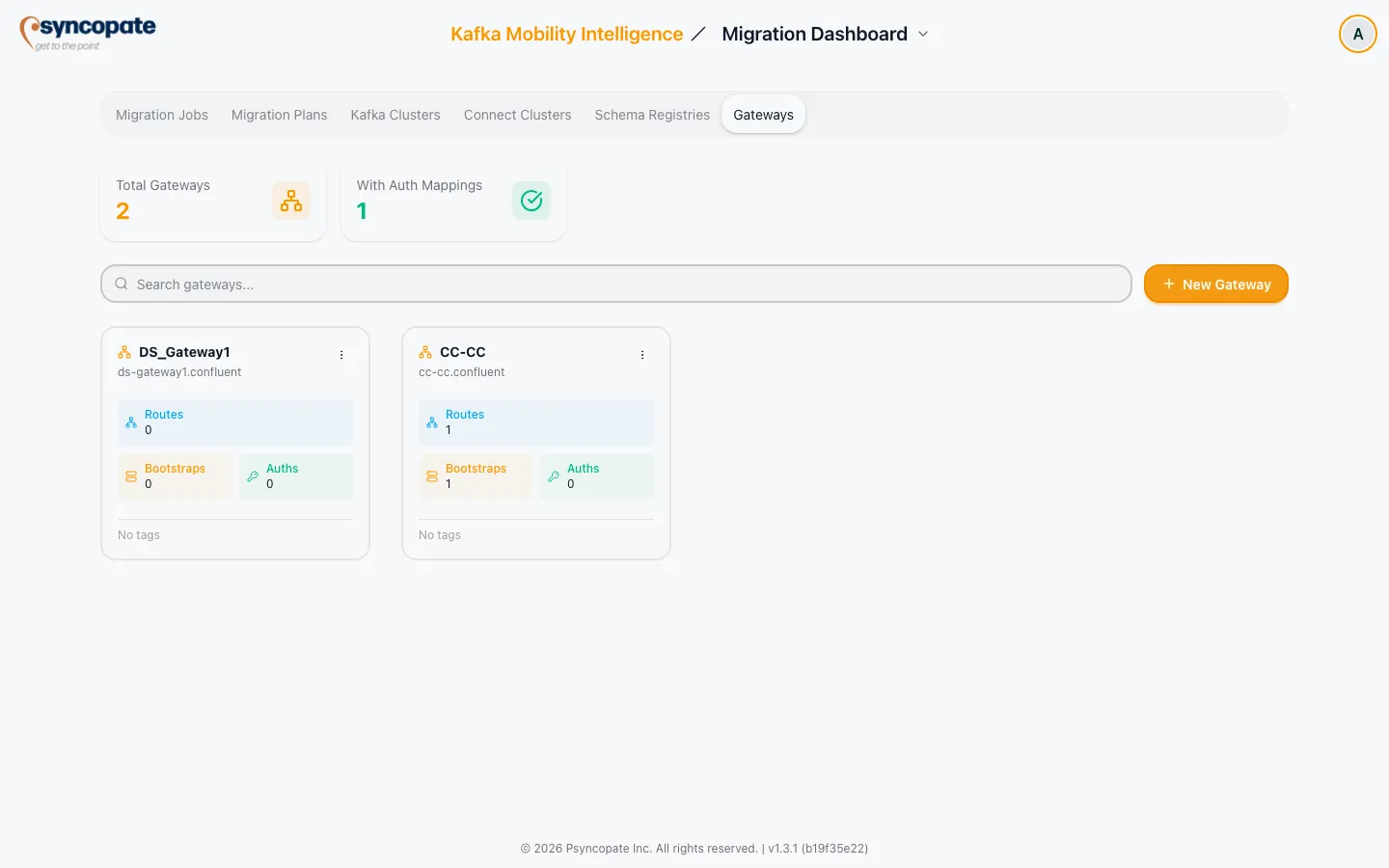

Finding Your Gateways

Gateway resources are managed from the Gateways tab on the dashboard, one of six tabs in migration mode, alongside Migration Jobs, Migration Plans, Kafka Clusters, Connect Clusters, and Schema Registries. The Gateways tab isn’t shown at all in DR mode.

Above the card grid, two stat cards summarize Total Gateways and gateways With Auth Mappings, and a search box filters cards by alias, description, tags, or gateway name. Users with the Infrastructure Manage permission also see a + New Gateway button here (see Creating a Gateway). While gateways are loading, placeholder skeleton cards are shown in their place; with none saved yet, or none matching your search, an empty state prompts you to add your first gateway or adjust your search terms. The grid paginates once you have enough gateways to need it.

Gateway Cards

Each saved gateway is shown as a card with:

Element	Description
Alias	The gateway’s display name, with a network icon
Name / Namespace	The gateway name and Kubernetes namespace, shown as a second line
Stat counts	Routes, Bootstraps, and Auths, computed from the Init state config
Tags	The first two tags as badges, with a +N badge for any remaining tags, or “No tags” when none are set

Clicking a card opens its detail page. Users with the Infrastructure Manage permission additionally see a kebab menu on each card with Edit, Download YAML, Duplicate, and Delete (shown in red). The menu shows “Downloading…” while a download is in progress. Users without that permission don’t see the kebab menu but can still open the read-only detail page. Edit opens the Builder Workspace; a gateway’s alias, description, and tags are set when you create it and can’t be changed afterward.

Tip

The card’s Download YAML fetches and downloads all three states’ CRs at once, with no state picker, which is different from the detail page’s own Download YAML action, which opens a modal to pick a single state first (see Gateway Detail).
