X-Ray Guided Operations

X-Ray is a guided operations panel inside the Monitor tab that walks you through failover and failback with step-by-step instructions, pre-flight checks, and live lag data.

Activating X-Ray

Click the X-Ray toggle in the Monitor tab status header. The main Monitor view is replaced by the X-Ray panel.

X-Ray is available when DR status is Replicating, Paused, Degraded, Failover-In-Progress, Failed-Over, or Failback-In-Progress.

Operation Modes

Select an operation mode from the dropdown at the top of the X-Ray panel. Available modes depend on the current DR status:

Mode	Available When	Description
Planned Failover	Replicating, Degraded, Paused	Controlled cutover with pre-flight checks and operator acknowledgements
Emergency Failover	Replicating, Degraded, Paused, Failed	Immediate cutover without pre-check gate; accepts potential data loss
Planned Failback	Failed-Over (after a planned failover)	Controlled return to original primary
Emergency Failback	Failed-Over (after an emergency failover); Failed	Immediate return requiring truncate and restore

After a failover completes, only the matching failback rail is available: planned failover -> planned failback only; emergency failover -> emergency failback only.

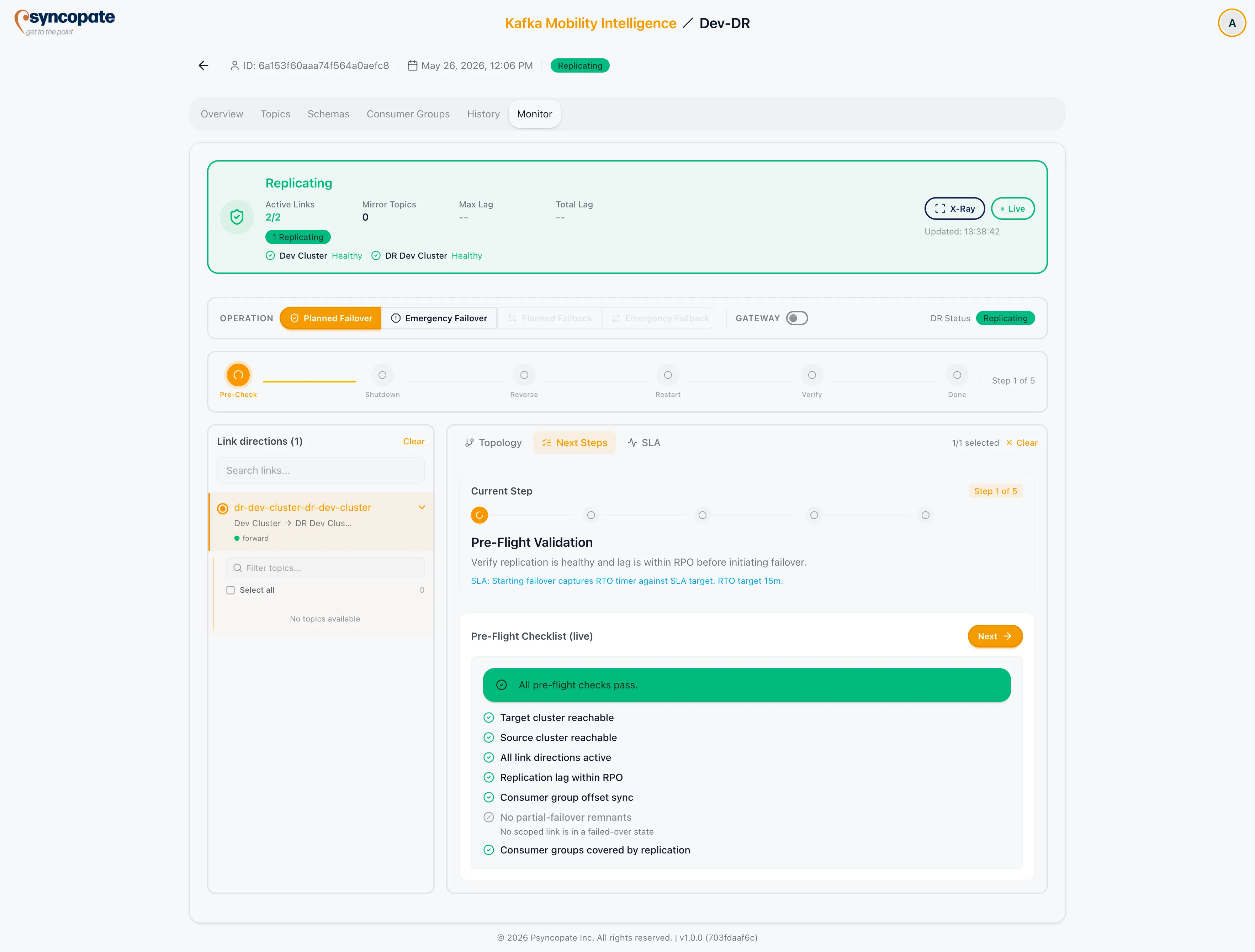

X-Ray panel showing operation mode dropdown and step rail

Step Rail

Each mode executes an ordered sequence of steps. The current step is highlighted in the rail.

Planned Failover steps: Pre-Flight Checks -> Shutdown Producers & Consumers -> Reverse and Start -> Restart Producers & Consumers -> Verify Traffic

Emergency Failover steps: Assess Damage -> Shutdown Producers & Consumers -> Failover Mirrors (Immediate) -> Restart Producers & Consumers -> Verify Traffic

Planned Failback steps: Pre-Flight Checks -> Shutdown Producers & Consumers -> Reverse and Start -> Restart Producers & Consumers -> Verify Traffic

Emergency Failback steps: Assess Damage -> Shutdown Producers & Consumers -> Truncate and Restore -> Reverse and Start -> Restart Producers & Consumers -> Verify Traffic

Guidance View

Each step shows:

A description of what the step does
Specific action items for the operator
A primary CTA button that executes the step or records an attestation

CTA buttons are disabled until the conditions for the current step are met. For operator-attestation steps (Shutdown, Restart, Verify Traffic), the button records that the operator has completed the manual action.

Warnings Strip

An alert strip above the step rail shows active X-Ray warnings, sorted by severity (error, then warning). A summary badge counts them as “N critical” and “N warnings”. The titles below are the ones the strip displays:

Warning	Severity	Meaning
Target cluster unreachable	Error	The target cluster is not responding to cluster-level probes
Target cluster is degraded	Warning	The target cluster is reachable but degraded
Source cluster unreachable	Error	The source cluster is not responding to cluster-level probes
Source cluster unavailable	Error	A link reports its source cluster as unreachable. This is link-derived, so it can appear alongside the cluster-level warning above. It also fires whenever either direction is in a Failed state, with no source-reachability signal involved, so read it together with the Link direction failed row rather than as proof the source is down
Critical RPO breach	Error	Replication lag crossed the critical RPO threshold
RPO warning threshold exceeded	Warning	Replication lag crossed the warning RPO threshold
RTO breach: cluster downtime exceeds target	Error / Warning	A cluster has been down longer than its RTO target. Severity follows the breach level
Approaching RTO target	Warning	An in-progress failover or failback has passed 75% of the RTO target
RTO target exceeded	Error	An in-progress failover or failback has run longer than the RTO target
Link direction failed	Error	A link direction is in a Failed state
Link direction degraded	Warning	A link direction is Degraded
Consumer group offset sync disabled	Warning	Offset sync is disabled on a direction
Consumer group offset sync is stale	Warning	The last offset sync was more than 60 seconds ago
Partial failover state	Warning	A Failed-Over link still has one or more directions reporting Failed. The message names how many failed, and how many completed if any did
Emergency failover may incur data loss	Warning	Pre-flight advice, shown as soon as you select Emergency Failover in the operation selector, on a link that is still Replicating, Degraded, or Failed. It does not measure lag. It clears once the session opens and the link moves to Failing-Over, so it is not a live indicator during the operation. The data-loss guidance for the promotion step itself is carried on the step panel, at critical urgency

SLA View

The X-Ray SLA panel shows RPO and RTO gauges for the active link:

The RPO gauge is scaled to the critical threshold of whichever RPO dimension applies to the link. The dimension is not something you choose: it follows the replication tool, which for Cluster Linking means offset (message count) lag, and falls back to time when no offset critical threshold is set. 100% on the ring means the critical threshold has been breached, and the ring turns amber once lag reaches the warning threshold. When the gauge resolves to time, the informational RPO target from the wizard is shown as a secondary label; when it resolves to offset, that label is omitted here and appears on the Overview tab’s SLA card instead.
The RTO gauge shows elapsed downtime or operation time against the configured RTO target. It has no configured warning threshold, so it turns amber at 75% of the target and red once the target is passed.

A sidebar panel shows per-link lag pills with the current max lag for each link. This helps you assess replication state before initiating an operation.

Pre-Flight Checks

Pre-flight checks run at the start of Planned Failover and Planned Failback. See Failover and Failback Workflows for the full check list and severity policy.
